Solving Recurrences - Recursion Tree method

Solving Recurrences - Recursion Tree method

Methods to solve the recurrences to get bounds on the runtime are :

1. Substitution method
2. Recursion tree
3. Master theorem

2. The recursion-tree method for solving recurrences

A recursion tree is a tree where each node represents the cost of a certain recursive sub-problem. Then you can sum up the numbers in each node to get the cost of the entire algorithm.

A recursion tree is best used to generate a good guess, which you can then verify by the substitution method.

Example:

 Consider a recurrence:

Drop the floors and write a recursion tree for  T(n) = 3T(n /4) + cn².

For convenience, assume that n is an exact power of 4 so that all subproblem sizes are integers.

Part (a) of the figure shows T(n), which we expand in Part (b) into an equivalent tree representing the recurrence. The cn² term at the root represents the cost at the top level of recursion, and the three subtrees of the root represent the costs incurred by the subproblems of size n/4.

Part (c) shows this process carried one step further by expanding each node with cost T(n/4) from Part (b). The cost for each of the three children of the root is c(n/4)².

Because subproblem sizes decrease by a factor of 4 each time we go down one level, we eventually must reach a boundary condition.

The subproblem size for a node at depth i is n=4ⁱ. Thus, the subproblem size hits n =1 when n / 4ⁱ = 1 or, equivalently, when i = log₄ n. Thus, the tree has log₄ n +1 levels (at depths 0,1,2,.........,log₄ n).

Next we determine the cost at each level of the tree. Each level has three times more nodes than the level above, and so the number of nodes at depth i is 3ⁱ. And because subproblem size reduce by a factor of 4 for each level we go down from the root, each node at depth i, for i = 0,1,2,…….,log₄ n-1, has a cost of c(n/4ⁱ )².

Therefore the total cost over all nodes at depth i, for i = 0,1,2,…..,log₄ n -1, is

3ⁱ c(n/4ⁱ )² = (3 /16)ⁱ c n².

The bottom level, at depth log₄ n, has 3^log₄ ⁿ = n^log₄ ³ nodes, each contributing cost T(1) for a total cost of n^log₄ ³T(1), which is θ(n^log₄ ³), since we assume that T(1) is a constant.

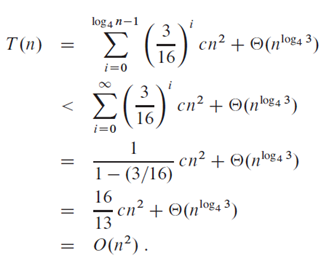

Now we add up the costs over all levels to determine the cost for the entire tree:

Can be written as,

Thus, we have derived a guess of T (n) = O(n²) .

Now use the substitution method to verify the guess correctness.

T (n) = O (n²) is an upper bound for the recurrence

We want to show that T (n) ≤ dn² for some constant d > 0.

Using the same constant c > 0 as before, we have

where the last step holds as long as d ≥ (16/3)c.(when c =(3/16)d,  i.e. d ≥ (16/3)c).
